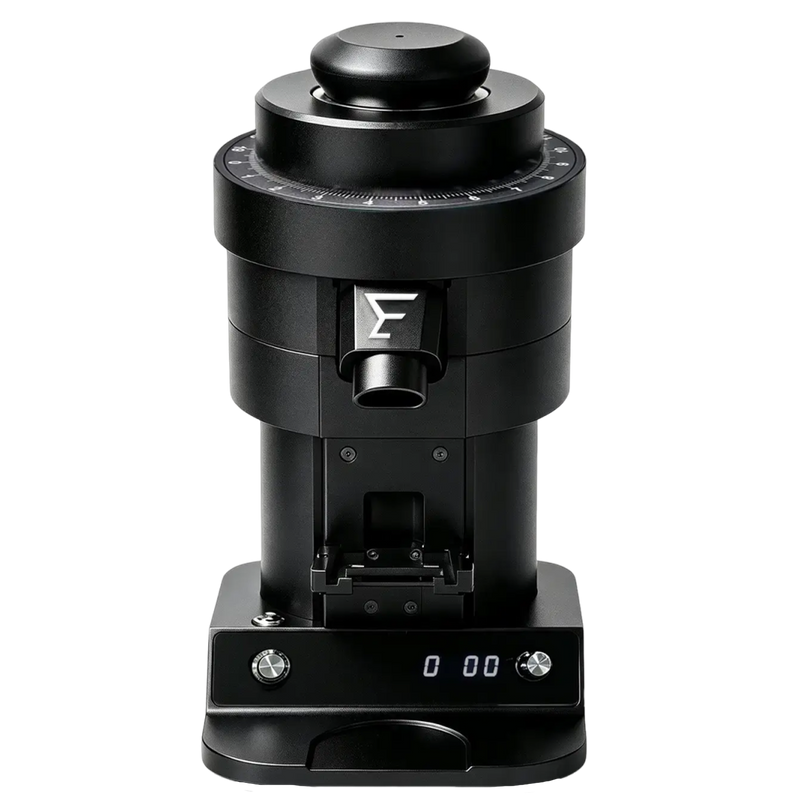

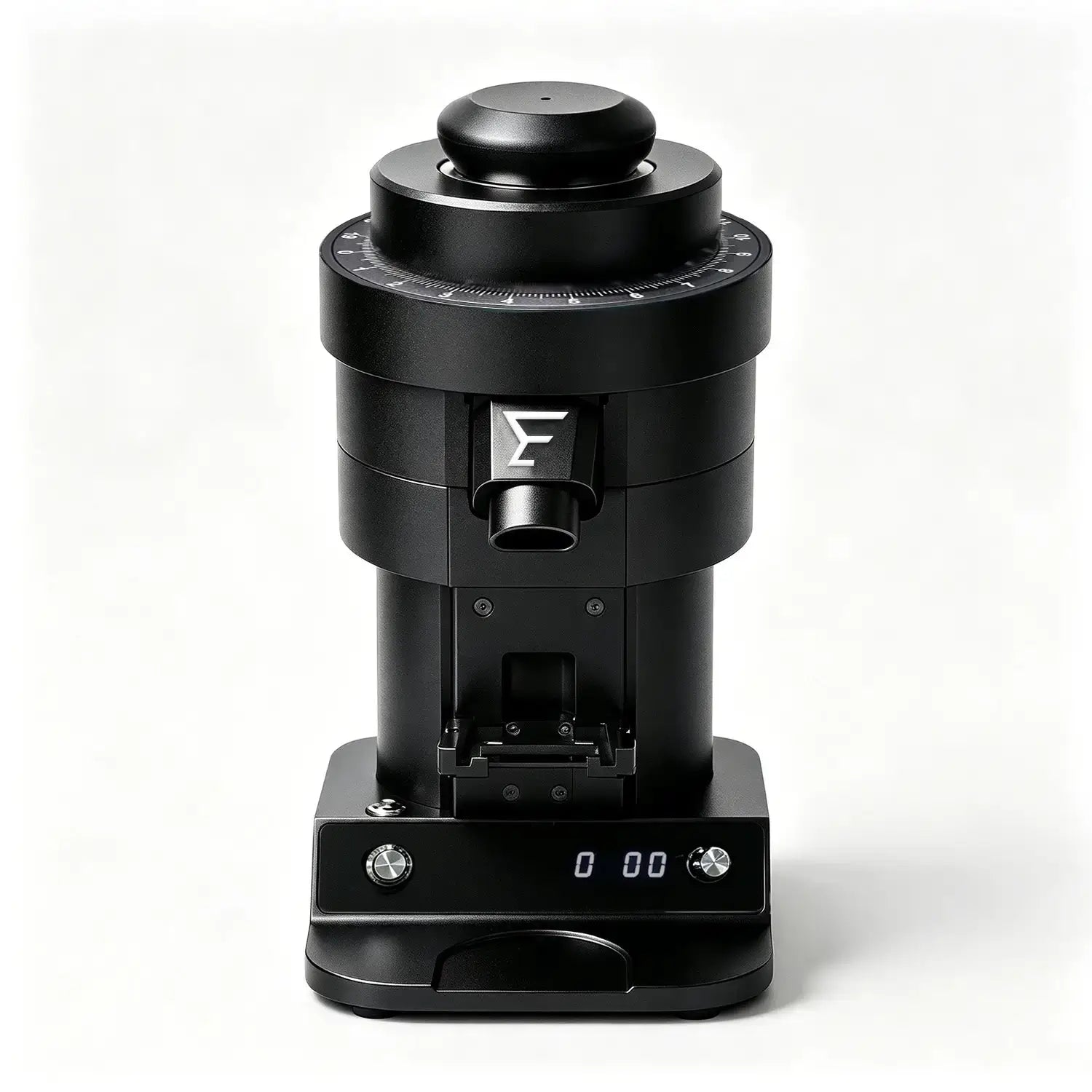

YEH-120L 120mm Professionelle Einzelportions-Kaffeemühle
YEH-120L 120mm Professionelle Einzelportions-Kaffeemühle
Verfügbarkeit für Abholungen konnte nicht geladen werden
Free Repair
12-Month Full Warranty
Lifetime After-Sales
Die YEH-120L wurde speziell für Kaffeespezialitäten-Shops, Labore und ambitionierte Home-Baristas entwickelt, die keinerlei Kompromisse eingehen. Mit einem massiven 120-mm-Flachmahlwerk bietet sie eine unvergleichliche Partikeloberfläche und Verteilungskonsistenz.
Hauptmerkmale:
Professionelle Einzeldosis, klar definiert
Die YEH-120L ist nicht als Hopper-Mühle für den Dauereinsatz konzipiert. Sie wurde für professionelle Umgebungen entwickelt, in denen individuelle Dosen gewogen, häufig Kaffeesorten gewechselt und eine kontrollierte Plattform für die Rezeptentwicklung, Verkostung oder den Premium-Barbetrieb benötigt wird.
Eine 120-mm-Plattform für Mahlwerk-getriebene Geschmacksarbeit
Das große Flachmahlwerkformat bietet den Mahlwerkdesignern eine breite Arbeitsfläche für spezielle Geometrien. Die Kompatibilität mit ausgewählten blinden und gelochten 120-mm-Sets ermöglicht es Cafés und Laboren, die Mühle auf ihr bevorzugtes Espresso- oder Filterziel abzustimmen.
Leistungs- und Drehzahlbereich für dichte Kaffees
Der 2000-W-bürstenlose FOC-Motor arbeitet in einem spezifizierten Bereich von 300–2000 U/min. Er liefert das Drehmoment und die Kontrolle, die beim Mahlen dichter heller Röstungen, beim Betrieb großer Mahlwerke und beim Testen verschiedener Geschwindigkeitseinstellungen erwartet werden.
Für weitere detaillierte Informationen besuchen Sie bitte unsere YEH-120L Produktseite.
Hinweis:
- Produktfotos dienen nur zur Veranschaulichung und geringfügige Änderungen können auftreten – die aktuellen Lieferungen entsprechen immer dem neuesten Modell.
- Die Lieferzeit kann je nach Verfügbarkeit des Mahlwerks und der Montage der Produkte 2 Monate betragen.
YEH-120L Single‑Dose Grinder
- 120mm flat burrs, 0.02mm grind resolution
- Near-zero retention – no stale grounds carryover
- 50–2000 rpm variable speed for any roast
- 2000W stepless motor – easily grinds coffee beans
Precision Engineering
Near-Zero Retention (≤0.1g)
Engineered as a true single-dose commercial-grade powerhouse with an efficient anti-static setup to eliminate ground retention and static flying.
Precision Adjustment
Micron-Level Alignment (≤0.015mm)
Equipped with a high-rigidity, independent angular contact bearing spindle to achieve a microscopic internal runout variance of ≤0.015mm.
Compatible Burrs
Massive 120mm Burr Compatibility
Designed for elite-tier 120mm flat burrs (supports both blind and screw-hole configurations), providing exceptionally fast grinding speed and an incredibly clean cup profile.
Detail
| Grinding Accuracy | 0.01~0.02mm |
| Scale System | 0~200 increments of stepless adjustment |
| Coffee Grinder Burrs | 120mm Flat Burr |
| Speed Adjustment | 300-2000rpm |
| Grinding Residue | <0.1g |
| Power Supply | 220V, 50/60Hz |
| Bean Capacity | 25~30g |
| Size | 270x180x360mm |
| Weight | 18.5kg |
| Color | Silver / Black |
The YEH-120L: Full Product Showcase
FAQ
How do I adjust the grinding fineness on the YEH-120L?
The YEH-120L features an ultra-precise stepless adjustment dial.
Turn the dial clockwise (toward the right) for a coarser grind (e.g., Pour-over, Cold Brew).
Turn the dial counter-clockwise (toward the left) for a finer grind (e.g., Espresso, Turkish coffee).
Note: Please ensure the motor is running when adjusting to a finer setting if there are beans inside the grinding chamber, to prevent the burrs from locking.
How often should I clean the grinder?
A full deep clean is recommended every 15 days. Unplug first, detach the powder spout and hopper, unscrew the 4 top bolts with the included hex key, and lift the upper section to expose the burrs. Clean with the included brush or a small vacuum. Wipe mating surfaces before reassembling.
Does the grinder require calibration after I take it apart for cleaning?
No. Thanks to our patented quick-leveling and independent spindle design, the grinder automatically snaps back into its factory micron-level alignment upon reassembly. You only need to remove 3 screws to detach the components for cleaning, and once reassembled, the zero point and alignment remain perfectly locked—no tedious manual calibration required.
What should I do if the grinder suddenly stops or the motor jams (Burr Lock)?
If the grinder stops due to extra-hard beans or an overly fine setting:
Immediately turn off the power switch and unplug the machine.
Turn the adjustment dial clockwise to a coarser setting.
Plug it back in, turn it on, and let the motor clear the remaining grounds.
If it remains jammed, follow the manual instructions to safely remove the upper burr carrier and clear the blockage.
How do I properly clean and maintain the grinder?
Daily Cleaning: Use the included press-to-blow bean hopper (bellows) at the end of your grinding cycle to purge any residual loose grounds. Clean the powder chute with the provided brush.
Deep Cleaning: Detach the upper burr carrier by removing the 3 quick-release screws. Use a brush or dry cloth to clean the burrs and grinding chamber.
CRITICAL SAFETY NOTE: Never wash any part of the grinder body, chamber, or burrs with water. Water will damage the precision bearings, rust the steel components, and pose a severe electrical hazard.
Is the YEH-120L compatible with third-party burrs?
Yes. The YEH-120L is engineered with a highly versatile carrier that natively supports standard 120mm flat burrs, including both blind burrs (screwless surface) and traditional screw-hole configurations (such as standard Lebrew 120, SSP 120HU, or SSP 120LS).
Why is there a slight static cling or flying chaff, and how can I fix it?
Although the grinder features built-in anti-static engineering, ambient humidity and bean roast levels can still cause static. We highly recommend using the RDT (Ross Droplet Technique): slightly misting your coffee beans with a single drop of water or using a damp stir stick before grinding will completely eliminate static and flying chaff.
Can I use this grinder for commercial environments?
Absolutely. Powered by a heavy-duty 2000W high-torque servo motor with an independent industrial-grade spindle, the YEH-120L is fully capable of handling continuous commercial workflows in specialty coffee shops, labs, and roasting facilities.
